LKD3588S Rockchip SBC With Duel Channel LVDS Up To 1080P@60HZ

Product Details

Place of Origin: Shanghai, China

Brand Name: Neardi

Model Number: LKD3588S

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: Negotiable

Packaging Details: 33.5×19×9 cm

Delivery Time: 7 days

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 10000/pieces/mon

Get Best Price
Product Details
Highlight:

1080P@60HZ Rockchip SBC

,

Duel Channel LVDS Rockchip SBC

,

LKD3588S Rockchip SBC

SoC:
RK3588S
Supplier Type:
OEM/ODM
CPU:
4A76 + 4A55
GPU:
ARM Mali-G610 MC4
NPU:
6 TOPS
VPU:
8K
DDR:
LPDDR4, With Options For 4GB, 8GB, Or 16GB Capacities.
EMMC:
EMMC 5.1, 32GB, 64GB, Or 128GB
Working Temperature:
-10 ~ 70℃
PCB Interface:
B2B
Embedded:
Yes
OS:
Android / Ubuntu / Buildroot / Debian
Application:
Medical Equipment/Networking And NAS
SoC:
RK3588S
Supplier Type:
OEM/ODM
CPU:
4A76 + 4A55
GPU:
ARM Mali-G610 MC4
NPU:
6 TOPS
VPU:
8K
DDR:
LPDDR4, With Options For 4GB, 8GB, Or 16GB Capacities.
EMMC:
EMMC 5.1, 32GB, 64GB, Or 128GB
Working Temperature:
-10 ~ 70℃
PCB Interface:
B2B
Embedded:
Yes
OS:
Android / Ubuntu / Buildroot / Debian
Application:
Medical Equipment/Networking And NAS
Product Description
LKD3588S Rockchip SBC With Duel Channel LVDS up to 1080P@60HZ

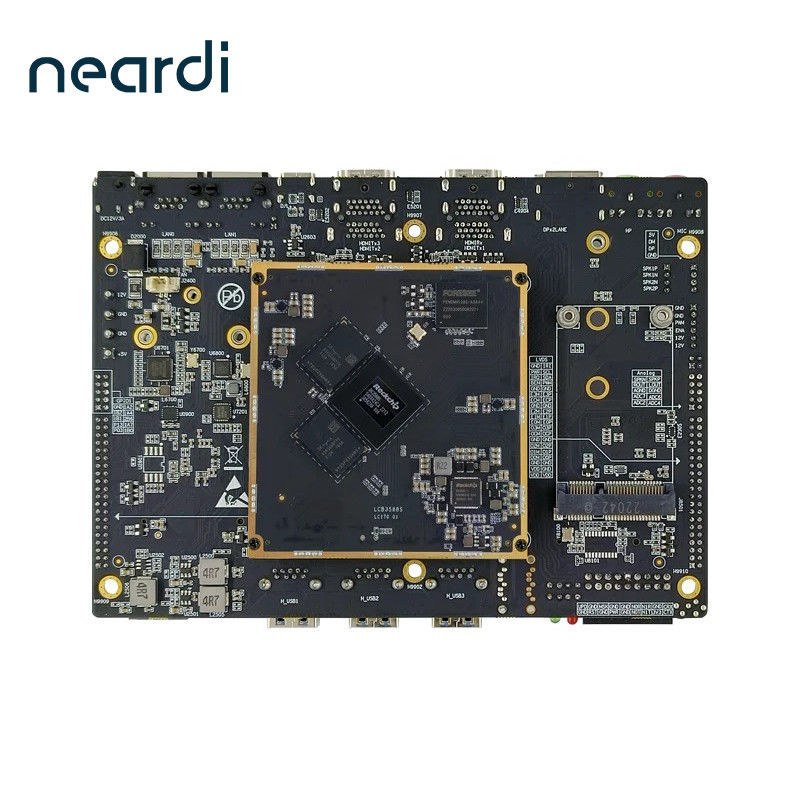

The LKD3588S is a high-performance, multifunctional development and evaluation board built on the Rockchip RK3588 platform. It integrates our LCB3588S core module with a baseboard, connected via a B2B connector and secured with four M2 screws, ensuring stability and reliability. Designed for space-constrained applications, its compact and slim profile makes it an excellent choice for embedded systems requiring high computational power and extensive connectivity.


Comprehensive Interface & Connectivity


The LKD3588S is equipped with a rich set of interfaces, making it ideal for AI, industrial automation, and multimedia applications:

USB Ports: 3 × Type-A USB 3.0, 1 × Type-C USB 3.1, and 1 × USB 2.0 (4-pin PH2.0) for multiple USB camera connections.

Communication Modules: Supports dual-band WiFi 6, Bluetooth 5.0, dual 1000M Ethernet, and various industrial interfaces like UART, I2C, RS232, RS485, and CANBUS.

Wireless Expansion: Mini-PCIe slot for external 4G modules, expanding connectivity options.

Display Interfaces:

2 × HDMI outputs, 1 × DP output, and 1 × dual-channel LVDS for multi-screen display.

Multiple MIPI-CSI camera inputs and 1 × HDMI 2.0 input, enabling advanced computer vision applications.


Optimized for Performance & Development


The LKD3588S supports Android, Buildroot, Debian, and Ubuntu, ensuring high performance, reliability, and scalability for various embedded applications. With open-source system code, developers can customize and optimize their projects efficiently.


Enterprise-Grade Support & Faster Time-to-Market


We provide comprehensive technical support, helping developers and businesses streamline R&D processes and accelerate product development and mass production, making the LKD3588S an ideal choice for AI, industrial, and embedded computing applications.


Function Description
CPU

RK3588S 8nm; 8-core 64-bit processor architecture (4A76 + 4A55).

GPU

ARM Mali-G610 MC4; Supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2;
OpenCL 1.1/1.23/2.0; High-performance 2D image acceleration module.

NPU 6TOPS computing power / 3-core architecture; Supports
int4/int8/int16/FP16/BF16/TF32
VPU

Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS;
Supports H.264/H.265 video encoding, up to 8K30FPS

DDR LPDDR4, with options for 4GB/8GB/16GB.
eMMC
eMMC 5.1, with options for 32GB/64GB/128GB.
PMU RK806
OS Android / Ubuntu / Buildroot / Debian
Power DC12V - 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector)
USB 3*Type-A USB3.0 HOST
1* Type-C USB3.1 OTG
1*4Pin PH2.0 USB2.0 HOST
Display

2*Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps
Duel channel LVDS up to 1080P@60HZ

Audio φ3.5mm earphone Jack with L/R audio out
φ3.5mm micphone Jack with Mic in
1*HDMI audio out
Camera 3* MIPI CSI (4 Lane) or 2*MIPI CSI (2 Lane) + 2* MIPI CSI (4 Lane)
SD Compatible with SDIO 3.0 protocol, system boot up supported
SIM card  Micro sim slot for Mini-PCIe 4G LTE module
RJ-45 2*10/100/1000-Mbps data transfer rates
RTC RTC power on and off supported
Serial port

3*Uart, 1*I2C,1*CAN

Keys 3* keys (power, reset, update)
Power output 12V, 5V, 3.3V,1.8V
Dimensions Length * Width * Height (mm) 160*115*28.25
Operating Temperature  -10 ~ 70℃
Weight Approximately Approximately 200g (excluding peripherals)
