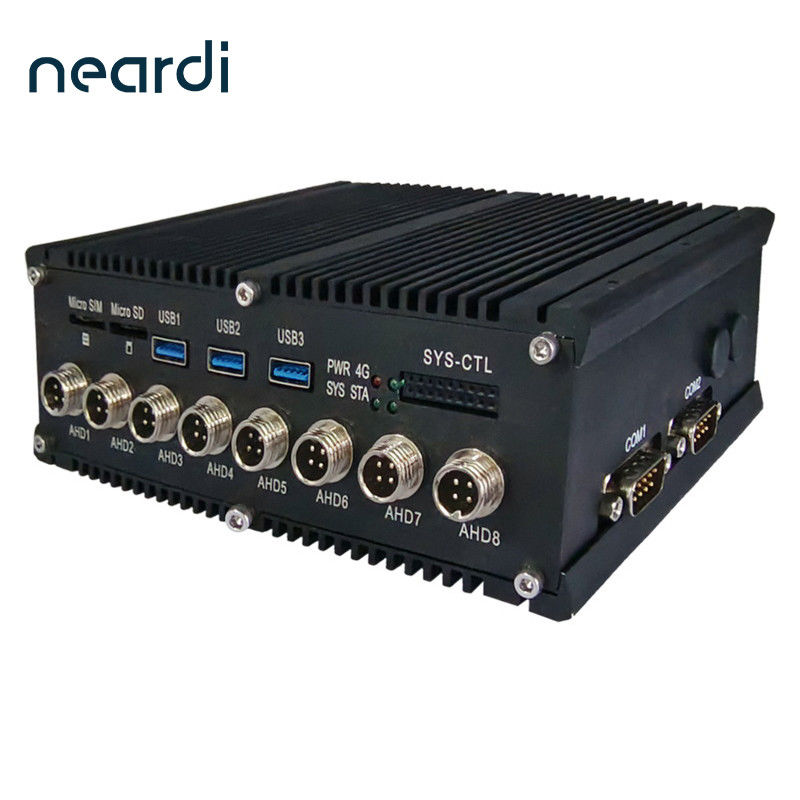

Neardi LPA3588 Windows Mini Embedded Computer System Box PC RK3588



The LPA3588 is an intelligent computer meticulously designed based on the Rockchip RK3588 chip. The body is made of full aluminum material with a fanless design and an innovative internal structural combination, allowing key heat-generating components such as the CPU and PMU to efficiently conduct heat to the external aluminum casing, using the entire body casing as a heat-dissipation material. This design not only enables the LPA3588 to perform excellently in more severe working environments but also allows it to be widely applied in various industrial scenarios. The LPA3588 has a variety of interfaces, including 3 USB 3.0 HOSTs, and 1 full-function Type-C interface that can connect multiple USB cameras. It has 2 onboard mini-PCIe interfaces that can be expanded to connect 4G/5G modules or NPU computing cards with mini-PCIe interfaces based on RK1808, combined with multiple cameras to form an artificial intelligence vision computer.



In addition, the LPA3588 supports dual-band WIFI 6, BT5.0, 2 Gigabit Ethernet, CANBUS, RS485, and other communication module interfaces. It provides 3 HDMI outputs, 1 HDMI input, supports audio input and output, can be connected to a 10W@8Ω stereo sound box, 1 DP interface output, 1 dual-channel LVDS interface and backlight control and touch screen interface, and has a built-in M.2 NVMe 2280 solid-state drive interface that can be connected to various display interfaces and supports multi-screen independent display. The LPA3588 intelligent computer supports the simultaneous connection of 8 AHD cameras, with each camera supporting up to 1920*1080@30Hz image input; AHD cameras use the industry-standard GX12 aviation plug, which is reliable and has high stability. Multiple cameras can be connected at the same time, which is suitable for panoramic stitching, ADAS vehicle intelligent terminals, etc.



The LPA3588 supports multiple operating systems such as Android, Buildroot, Debian, and Ubuntu, offering excellent high performance, high reliability, and high scalability. The system source code is open to users, providing open-source support for secondary development and customization. We are committed to providing developers and enterprise users with comprehensive technical services to assist users in efficiently completing research and development work and helping customers quickly bring products to market.





Shanghai Neardi Technology Co., Ltd. was established in 2014, focusing on the field of intelligent electronic products, providing customers with one-stop solutions for design and production. The company adheres to the strategy of technological innovation and professional service, integrates the technical precipitation and industry experience of Neardi Technology, helps partners to introduce products to the market quickly and efficiently, effectively saves customers' time and resources, and becomes the product accelerator of partners.

1. Please take a valid purchasing voucher for maintenance requests when you have product failure problems.
2. We kindly provide one year of warranty to the ARM board except for non-warranty components(CPU, RAM, and Flash/ storage chips) and a three-month warranty to display and power adapter from the ex-factory date.
3. Product failure in expired time, we kindly provide paid maintenance service. Charges depend on the assessment by the maintenance department. If goods are seriously damaged, the accessory is discontinued, or other uncontrollable conditions may cause the products can not be fixed, Neardi will not provide maintenance service.
4. Neardi kindly provides one month of warranty for the repaired items, payment should be made to the appointed account. Note: This warranty is only valid for the repaired problem.
5. Please take necessary data backup before the defective item is sent back up for maintenance, all risks caused by no backup should be borne by customers.
6. Neardi will reject items sent back without our permission.
7. To goods within the warranty period, freight should be shared by both sides, otherwise, the customer should bear all maintenance-related freight and customs fees.
Non-warranty Coverage(Paid Maintenance Service):
1. Products out of warranty period;
2. Non-warranty components including CPU, RAM, and Flash chips;
3. Failure caused by improper operations like PCB short circuit, rupture;
4. Bar code or factory ID tampered or other operations cause the products can not be recognized;
5. The bar code or factory ID on the purchasing voucher is not matched with the product itself;
6. Product failure caused by unauthorized maintenance, improper operations, misuse operations, or other unexpected behaviors.
7. Product failure caused by force majeure.
8. Other failures caused during delivery.
