Product Details
Place of Origin: Shanghai, China
Brand Name: Neardi
Model Number: LKD3566
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 33.5×19×9 cm
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000/pieces/mon
SoC: |
RK3566 |
Supplier Type: |
OEM/ODM |
CPU: |
22nm Process, Quad-core 64-bit Cortex-A55 |
GPU: |
ARM G52 2EE |
NPU: |
The Build-in NPU Supports INT8/INT16/FP16/BFP16 MAC Hybrid Operation. |
VPU: |
4K/1080P |
DDR: |
LPDDR4/LPDDR4X, 1GB, 2GB, 4GB, Or 8GB |
EMMC: |
EMMC 5.1, 8GB/16GB/32GB/64GB/128GB |
Working Temperature: |
-10 ~ 70℃ |
PCB Interface: |
B2B |
Embedded: |
Yes |
OS: |
Android / Ubuntu / Buildroot / Debian |
Application: |
Interactive Kiosks/Educational Displays |
SoC: |
RK3566 |
Supplier Type: |
OEM/ODM |
CPU: |
22nm Process, Quad-core 64-bit Cortex-A55 |
GPU: |
ARM G52 2EE |
NPU: |
The Build-in NPU Supports INT8/INT16/FP16/BFP16 MAC Hybrid Operation. |
VPU: |
4K/1080P |
DDR: |
LPDDR4/LPDDR4X, 1GB, 2GB, 4GB, Or 8GB |
EMMC: |
EMMC 5.1, 8GB/16GB/32GB/64GB/128GB |
Working Temperature: |
-10 ~ 70℃ |
PCB Interface: |
B2B |
Embedded: |
Yes |
OS: |
Android / Ubuntu / Buildroot / Debian |
Application: |
Interactive Kiosks/Educational Displays |

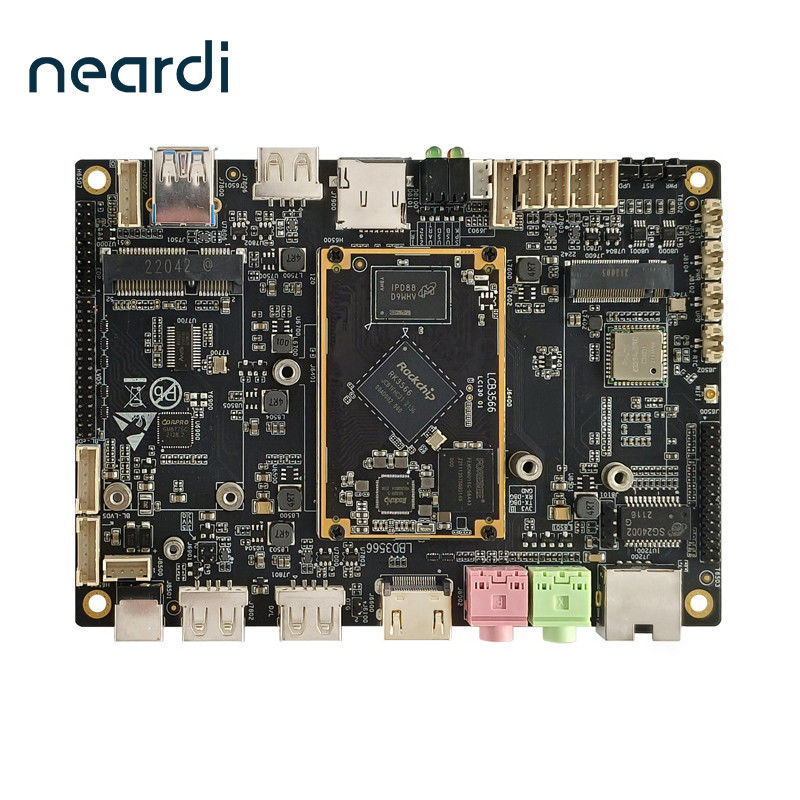

The LKD3566 is a multifunctional industry application board exquisitely designed based on the Rockchip RK3566 chip platform, consisting of our company's LCB3566 core module and baseboard. The core module is connected to the baseboard using a B2B connector and secured with four M2 screws, ensuring stability and reliability. The board is versatile, rich in interfaces, compact in size, and slim and flat, suitable for product deployment in various scenarios.
The LKD3566 features 1 USB 3.0 HOST, 4 USB 2.0 HOSTs, and 1 USB 2.0 OTG interface, capable of connecting multiple USB cameras externally. It also has 1 mini-PCIe interface for connecting a 4G module. Additionally, the LKD3566 supports dual-band WIFI6, BT5.0, 1000M Ethernet, UART, I2C, RS232, and other common communication module interfaces, and supports multiple display interfaces such as 1 HDMI output, 1 dual-channel LVDS, and 1 eDP interface.
The LKD3566 supports Android, buildroot, Debian, and Ubuntu operating systems, offering advantages such as high performance, high reliability, and high scalability, and provides users with open system source code. Users can develop and customize based on this product, and our company provides comprehensive technical support for developers and enterprise users, enabling them to efficiently complete research and development work and significantly shorten the product development and mass production cycle.
Function | Description |
SoC | RK3566, 22nm process, quad-core 64-bit Cortex-A55 |
GPU |
ARM G52 2EE, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, high quality 2D Graphics Engine build in |
NPU | The build-in NPU supports INT8/INT16/FP16/BFP16 MAC hybrid operation. |
VPU |
4KP60 H.265/H.264/VP9 video decoder |
DDR | LPDDR4/LPDDR4X RAM is available in optional capacities of 1GB, 2GB, 4GB, or 8GB. |
eMMC | eMMC 5.1 storage, with options for 8GB/16GB/32GB/64GB/128GB (Optional). |
PMU |
RK806 |
OS | Android / Ubuntu / Buildroot / Debian |
Hardware Interface | |
Power | DC12V - 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector) |
USB |
1*Type-A USB3.0 HOST, 1*Type-A USB2.0 OTG, 2*Type-A USB2.0 HOST + 2*wafer USB2.0 HOST |
Display Output | Type-A HDMI 2.0 up to 4K@60fps MIPI-DSI V1.2 4-Lane LCD up to 1920x1080@60Hz 1x eDP1.3 4-Lane 2.7Gbps up to 2560x1600@60Hz Duel channel LVDS up to 1080P@60HZ |
Audio |
φ3.5mm earphone Jack with L/R audio out |
Display input | MIPI-CSI V1.2 Camera Interface 4 data lanes, 2.5Gbps maximum data rate per lane |
Mini-PCIe | 1*mini PCIe for 2G/3G/4G module (USB2.0) |
M.2 | M.2 NGFF ( M-KEY ) PCIE V2.1 x4 with NVMe SSD supported |
SD card | Compatible with SDIO 3.0 protocol, system boot up supported |
SIM card | Micro sim slot for Mini-PCIe 4G LTE module |
RJ-45 | 1*10/100/1000 Ethernet |
Others | Uart, CANBUS, I2C, RS232 |
Dimensions | Length * Width * Height (mm) 140*100*14.3 |
Operating Temperature | -20 ~ 70℃ |
Weight Approximately | 115.3g (excluding peripherals) |
Wiki Documentation: | http://wiki.neardi.net/docs/welcome |
GitHub: | https://github.com/neardiGitLab: https://gitlab.com/neardiSDK |
Repository: | https://gitlab.com/neardi-linux |
Forum: | https://forum.neardi.com |
Video Tutorials: | https://www.youtube.com/@neardichannels |
