ARM G52 2EE GPU Industrial Vehicle Embedded PC Box LPA3568 RK3568 4GB 8GB

Product Description:

The LPA3568 intelligent host is a high-performance mainframe designed on the Rockchip RK3568 chip platform. With a full aluminum, fanless design, its innovative structure transfers heat from key components like the CPU and PMU to the external casing, effectively using the entire aluminum body as a heat sink. This design ensures it withstands tough working conditions, making it suitable for industrial applications.

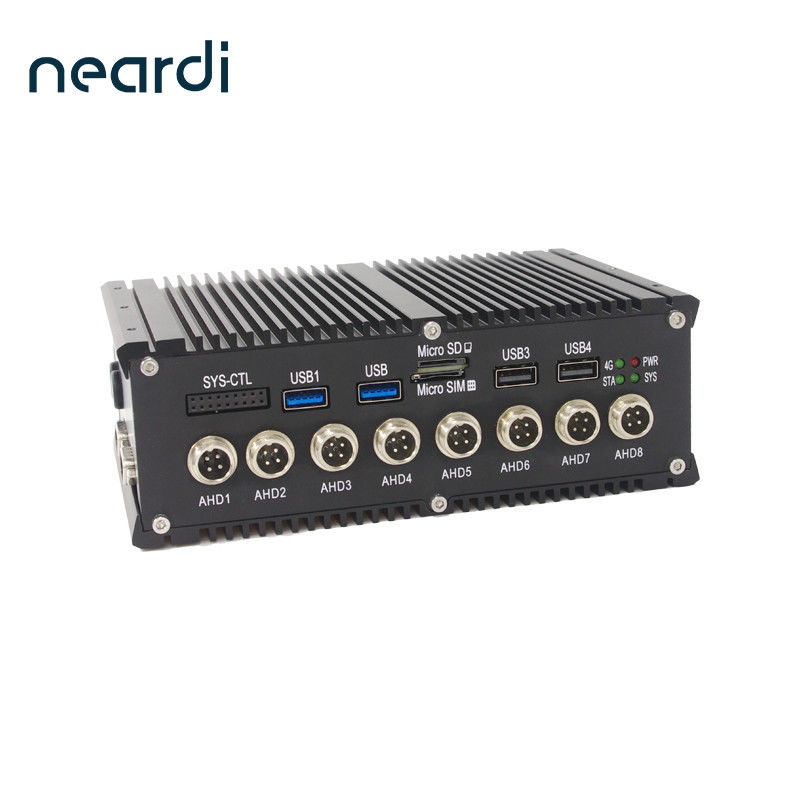

The LPA3568 vehicle host can connect up to 8 AHD cameras simultaneously, each supporting video input up to 1280*720@30Hz. Using industry-standard GX12 aviation connectors, the AHD cameras provide reliable and stable connections. This makes it ideal for panoramic stitching and ADAS vehicle intelligent terminals. It operates with a wide voltage supply range of 9V~36V and includes protections against overvoltage, overcurrent, surge, and reverse polarity, with isolation between the metal casing and the internal system GND. It features 4 USB ports (1 USB 3.0 OTG, 1 USB 3.0 HOST, and 2 USB 2.0 HOST) for connecting multiple USB cameras. Additionally, it includes 3 mini-PCIe interfaces for NPU computing cards, forming an AI vision computing host with up to 10TOPS computing power. It supports dual-band WIFI6, BT5.0, 2 1000M Ethernet ports, and can be expanded with 4G or 5G modules. Communication interfaces include 2 high-speed UARTs, 4 RS232s, 1 RS485, and 2 CANBUS. Display options include 2 HDMI outputs, 1 VGA output, 1 dual-channel LVDS interface, and 1 HDMI input, along with audio input and output. It can connect to a 10W@8Ω stereo sound speaker and includes an M.2 SSD interface for various displays, supporting dual-screen display with different content.

The LPA3568 supports 4 analog input channels for 0~16V voltage detection or 4~20mA current detection, compatible with various industrial transmitters. It offers 3 power output channels (3.3V/2A, 5V/2A, and 12V/2A), controllable via GPIO software. Supporting Android, buildroot, Debian, and Ubuntu systems, the LPA3568 offers high performance, reliability, and scalability with open system source code. Users can develop and customize their projects, and our company provides comprehensive technical support to help efficiently complete R&D work and significantly shorten the product development and mass production cycles.

Technical Parameters:

Support and Services:

The Embedded Computer product technical support team is available to assist with any product-related inquiries or issues. Our team of experts can provide assistance with hardware and software configuration, troubleshooting, and diagnosing any potential issues. In addition, we offer a range of services including on-site installation and setup, firmware updates, and product training. Our goal is to ensure that our customers have a seamless experience when using our Embedded Computer product and we are committed to providing timely and effective support.

Packing and Shipping:

Product Packaging:

The embedded computer product will be carefully packaged in a sturdy cardboard box with adequate padding to prevent any damage during transit. The components of the product will be individually wrapped in protective material to ensure they are not scratched or damaged during shipping. The box will also contain an instruction manual and any necessary cables or accessories.

Shipping:

The product will be shipped via a reliable courier service to ensure safe and timely delivery. Customers will receive a tracking number so they can keep track of their shipment. Shipping times may vary depending on the destination, but we will do our best to ensure that the product arrives as quickly as possible.

FAQ:

Q1: What is the place of origin of the Embedded Computer?

A1: The Embedded Computer is manufactured in Shanghai, China.

Q2: What is the minimum order quantity for the Embedded Computer?

A2: The minimum order quantity for the Embedded Computer is 1 piece.

Q3: What are the available payment terms for the Embedded Computer?

A3: The available payment terms for the Embedded Computer are L/C, D/A, D/P, and T/T.

Q4: What is the delivery time for the Embedded Computer?

A5: The delivery time for the Embedded Computer is 7 days.
