Product Details
Place of Origin: Shanghai, China
Brand Name: Neardi
Model Number: LCB3588
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 33.5×19×9 cm
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000/pieces/mon
SoC: |
RK3588 |
Supplier Type: |
OEM/ODM |
CPU: |
8nm; 8-core 64-bit Processor Architecture (4A76 + 4A55) |
GPU: |
ARM Mali-G610 MC4 |
NPU: |
6 TOPS |
VPU: |
8K60FPS/8K30FPS |
DDR: |
LPDDR4, With Options For 4GB/8GB/16GB. |
EMMC: |
EMMC 5.1, With Options For 32GB/64GB/128GB. |
PCB Interface: |
B2B(280 Pin 0.8mm Pitch) + FPC(4 * 30 Pin 0.5mm Pitch) |
SoC: |
RK3588 |
Supplier Type: |
OEM/ODM |
CPU: |
8nm; 8-core 64-bit Processor Architecture (4A76 + 4A55) |
GPU: |
ARM Mali-G610 MC4 |
NPU: |
6 TOPS |
VPU: |
8K60FPS/8K30FPS |
DDR: |
LPDDR4, With Options For 4GB/8GB/16GB. |
EMMC: |
EMMC 5.1, With Options For 32GB/64GB/128GB. |
PCB Interface: |
B2B(280 Pin 0.8mm Pitch) + FPC(4 * 30 Pin 0.5mm Pitch) |
RK3588 Linux SoM Module ARM Mali-G610 MC4 8K60FPS/8K30FPS

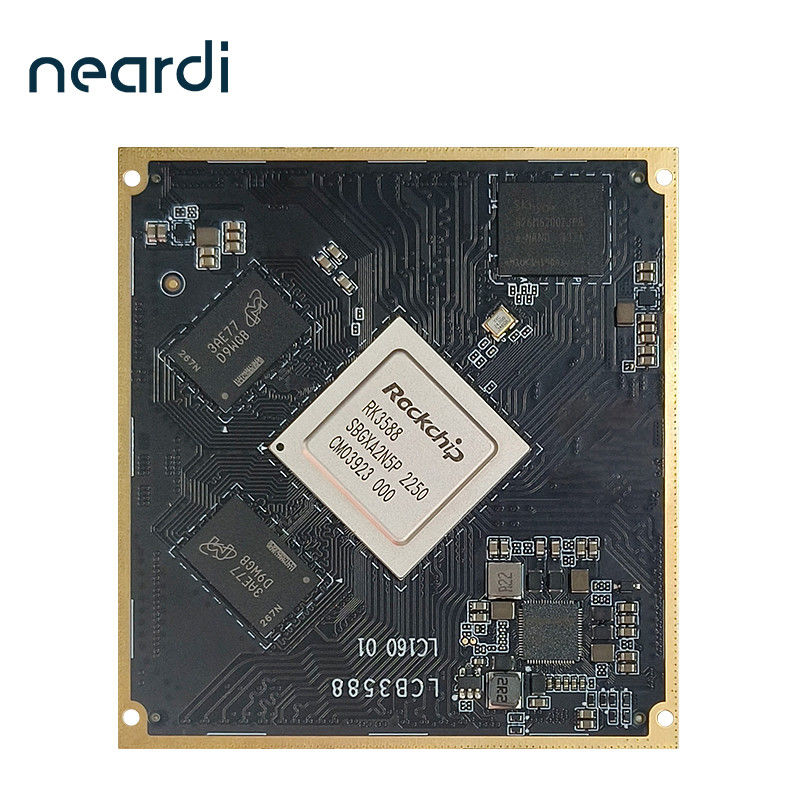

The LCB3588 core module is an all-in-one unit meticulously designed on the Rockchip RK3588 chip platform, with a compact size of 75mm by 70mm. It connects to the baseboard using two 140Pin board-to-board connectors with a 0.8mm pitch and four 30Pin FPC connectors with a 0.5mm pitch, all secured by four M2 screws. This setup ensures full utilization of the RK3588 pin signals while providing high reliability, low cost, and flexibility. FPC connectors can be added as needed, offering superior reliability and yield assurance in harsh industrial or long-term vibration environments compared to card-edge or smaller-pitch connectors.
The LCB3588 includes the RK3588 CPU, LPDDR4/LPDDR4X DDR (available in 2GB, 4GB, 8GB, and 16GB configurations), high-speed eMMC 5.1 storage (with options of 32GB, 64GB, and 128GB), and a power management unit (PMU) composed of the RK806 and multiple DC-DC and LDO components. The CPU core voltages support DVFS (Dynamic Voltage and Frequency Scaling).
With a modular design, the LCB3588 brings out all functional pins of the CPU, ensuring they have been fully tested and mass-verified. This approach allows users to save on project development cycles, reduce costs, and improve efficiency for product development.
| Function | Description |
| CPU | RK3588 8nm; 8-core 64-bit processor architecture (4A76 + 4A55). |
| GPU | ARM Mali-G610 MC4; Supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2; OpenCL 1.1/1.23/2.0; High-performance 2D image acceleration module. |
| NPU | 6TOPS computing power / 3-core architecture; Supports int4/int8/int16/FP16/BF16/TF32. |
| VPU | Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS; Supports H.264/H.265 video encoding, up to 8K30FPS. |
| DDR | LPDDR4, with options for 4GB/8GB/16GB. |
| eMMC | eMMC 5.1, with options for 32GB/64GB/128GB. |
| PMU | RK806 |
| OS | Android / Ubuntu / Buildroot / Debian |
| Video Input Interface | MIPI interface : 2 * MIPI(4 lanes) + 4 * MIPI(2 lanes), totally support 6 cameras input; 3 * MIPI(4 lanes) + 2 * MIPI(2 lanes), totally support 5 cameras input; 4 * MIPI(4 lanes) , totally support 4 cameras input; DVP interface: 8/10/12/16-bit standard DVP interface, up HDMI RX interface: HDMI 2.0 2160p@60 Hz, Support HDCP2.3 and HDCP1.4; |
| Video Output Interface | 1 * HDMI2.1 up to 8K@60fps; 1 * HDMI2.0 up to 4K@60fps; 2 * MIPI-DSI up to 4K@60fps; 2 * DP1.4 up to 8K@30fps; 2 * eDP1.3 up to 4K@60Hz; 1 * BT.1120 up to 1080@60fps; |
| Image Signal Processor | 8064*6048@15 dual ISP; 6528*4898@30 dual ISP; 4672*3504@30 single ISP; |
| Video Output Processor | Video Port0 up to 7680*4320@60Hz; Video Port1 up to 4096*4320@60Hz; |
| Operating temperature | Enterprise Grade: -20°C to 70°C Industrial Grade: -40°C to 85°C |
| PCB interface | B2B(280 Pin 0.8mm Pitch) + FPC(4 * 30 Pin 0.5mm Pitch) |
| PCB layers | 10 layers |
| PCB size | 75 *70 * 8.2(PCB thickness 1.6mm) |
The System On Module (SoM) product offers technical support and services to ensure optimal performance and functionality for your embedded system. Our team of experienced engineers provide assistance with hardware and software integration, customization and optimization, and troubleshooting. We also offer testing and validation services to ensure compliance with industry standards and regulations. Our goal is to provide reliable and efficient support to help you achieve your project goals and succeed in your market.
Product Packaging:
The System On Module (SoM) product is packaged in a secure anti-static bag to prevent any static electricity damage during transportation and storage. The bag is labeled with the product name, model number, and any other relevant information.
Shipping:
The SoM product is shipped in a sturdy cardboard box with foam inserts to ensure that the product is secure and protected during transportation. The box is labeled with the recipient's address, shipping information, and any other necessary details. The package is also sealed with tape to prevent tampering or damage during shipping.
Q: Where is the System On Module SoM manufactured?
A: The System On Module SoM is manufactured in Shanghai, China.
Q: What is the brand name of the System On Module SoM?
A: The brand name of the System On Module SoM is Neardi.
Q: What is the Minimum Order Quantity for the System On Module SoM?
A: The Minimum Order Quantity for the System On Module SoM is 1 piece.
Q: What are the available Payment Terms for the System On Module SoM?
A: The available Payment Terms for the System On Module SoM are L/C, D/A, D/P, and T/T.
Q: What is the Supply Ability of the System On Module SoM?
A: The Supply Ability of the System On Module SoM is 10000 pieces per month.
Q: What is the Delivery Time for the System On Module SoM?
A: The Delivery Time for the System On Module SoM is 7 days.
Q: What are the Packaging Details for the System On Module SoM?
A: The Packaging Details for the System On Module SoM are 33.5×19×9 cm.
Q: Is the price of the System On Module SoM negotiable?
A: Yes, the price of the System On Module SoM is negotiable.
